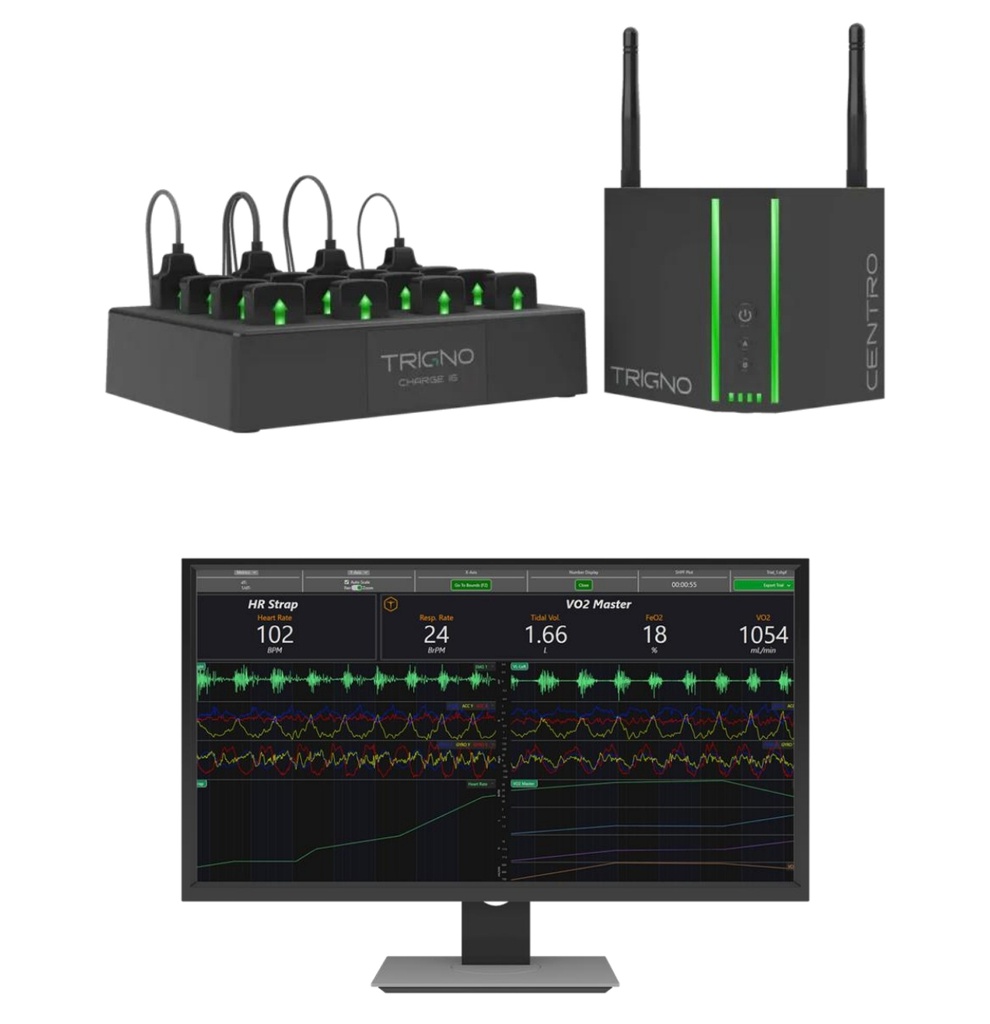

Trigno Centro 无线基站 Trigno Centro Wireless Base Station

Trigno Centro是Delsys无线肌电系统的核心接收设备，支持最多32个无线传感器同步采集，提供高速、稳定的无线数据传输。基站配备4个BNC触发接口和6个模拟输入通道，可与外部设备实现精确同步。

Trigno Centro is the core receiving device of the Delsys wireless EMG system, supporting up to 32 wireless sensors for simultaneous data acquisition. It provides high-speed, stable wireless data transmission. The base station is equipped with 4 BNC trigger interfaces and 6 analog input channels for precise synchronization with external devices.

·       支持最多32个无线传感器同步采集

·       4个BNC触发接口，支持输入/输出

·       6个模拟输入通道，24位分辨率

·       USB-C高速数据接口

·       医疗级12V电源供电

·       紧凑型设计，便于移动使用

·       Supports up to 32 wireless sensors for simultaneous acquisition

·       4 BNC trigger interfaces, input/output configurable

·       6 analog input channels, 24-bit resolution

·       USB-C high-speed data interface

·       Medical-grade 12V power supply

·       Compact design for portable use

Trigno Avanti 肌电传感器 Trigno Avanti EMG Sensor

Trigno Avanti是一款高性能无线肌电传感器，集成肌电（EMG）、三轴加速度计、陀螺仪和磁力计于一体，可同步采集肌电信号和运动学数据。传感器采用双模传输（RF+蓝牙），支持长时间连续工作，适用于各种科研和临床应用。

Trigno Avanti is a high-performance wireless EMG sensor integrating EMG, 3-axis accelerometer, gyroscope, and magnetometer in one unit. It can simultaneously acquire EMG signals and kinematic data. The sensor features dual-mode transmission (RF+Bluetooth) and supports long-duration continuous operation, suitable for various research and clinical applications.

·       肌电（EMG）+ IMU 9轴运动传感集成

·       采样率≥4350Hz，高精度采集

·       带宽20~450Hz / 10~850Hz双模式

·       基线噪声≤750nV，信号质量优异

·       电池续航≥6小时，支持全天工作

·       RF + 蓝牙双模无线传输

·       两对叠加平行杆电极

·       密封设计，易于清洁消毒

·       Integrated EMG + IMU 9-axis motion sensing

·       Sampling rate ≥4350Hz, high-precision acquisition

·       Dual bandwidth modes: 20~450Hz / 10~850Hz

·       Baseline noise ≤750nV, excellent signal quality

·       Battery life ≥6 hours, all-day operation

·       RF + Bluetooth dual-mode wireless transmission

·       Two pairs of overlaid parallel bar electrodes

·       Sealed design, easy to clean and disinfect

Trigno Discover 采集软件 Trigno Discover Acquisition Software

Trigno Discover是Delsys无线肌电系统的配套数据采集与分析软件，提供直观的用户界面，支持传感器配置、实时数据采集、数据处理和分析等功能。软件支持API/SDK集成，可与第三方系统无缝对接。

Trigno Discover is the companion data acquisition and analysis software for the Delsys wireless EMG system, providing an intuitive user interface for sensor configuration, real-time data acquisition, data processing and analysis. The software supports API/SDK integration for seamless connection with third-party systems.

·       直观的图形用户界面

·       支持实时数据采集与显示

·       传感器配置与管理

·       数据处理与分析工具

·       支持数据导出（多种格式）

·       API/SDK系统集成支持

·       兼容Windows操作系统

·       Intuitive graphical user interface

·       Real-time data acquisition and display

·       Sensor configuration and management

·       Data processing and analysis tools

·       Data export support (multiple formats)

·       API/SDK system integration

·       Windows operating system compatible

Trigno Charge-16 充电站 Trigno Charge-16 Charging Station

Trigno Charge-16是一款16槽传感器充电站，用于Trigno Avanti传感器的充电和存放。充电站采用SC-P09医疗级电源供电，内置磁铁可自动开启传感器，LED指示灯显示充电状态。

Trigno Charge-16 is a 16-slot sensor charging station for charging and storing Trigno Avanti sensors. The station is powered by the SC-P09 medical-grade power supply with built-in magnet for automatic sensor activation and LED indicators for charging status.

·       16个传感器充电槽位

·       LED状态指示（充电/完成）

·       内置磁铁自动开启传感器

·       SC-P09医疗级电源供电

·       充电时自动关闭传感器

·       紧凑设计，节省空间

·       16 sensor charging slots

·       LED status indicators (charging/complete)

·       Built-in magnet for automatic sensor activation

·       SC-P09 medical-grade power supply

·       Automatic sensor shutdown during charging

·       Compact design, space-saving

Trigno Power Supply 电源适配器 Trigno Power Supply Adapter

Trigno SC-P09是一款医疗级12V电源适配器，适用于Trigno Centro基站、Charge-4和Charge-16充电站。通过IEC 60601-1医疗电气设备安全认证，确保设备安全可靠运行。

Trigno SC-P09 is a medical-grade 12V power adapter for Trigno Centro base station, Charge-4 and Charge-16 charging stations. It is certified to IEC 60601-1 medical electrical equipment safety standards for safe and reliable operation.

·       医疗级12V直流输出

·       IEC 60601-1安全认证

·       通用100-240V AC输入

·       适用于Centro/Charge-4/Charge-16

·       2.1mm直流插头

·       过压/过流/短路保护

·       Medical-grade 12V DC output

·       IEC 60601-1 safety certified

·       Universal 100-240V AC input

·       Compatible with Centro/Charge-4/Charge-16

·       2.1mm DC barrel connector

·       Overvoltage/overcurrent/short-circuit protection
